OPERATING CONDITIONS
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
2SD minimum well diameter:2"
2.5SD minimum well diameter:2.5"
OPERATING CONDITIONS
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
2SD minimum well diameter:2"
2.5SD minimum well diameter:2.5"
1 Upgraded suspension impeller
The more the impeller stages,the higher the head, the greater the flow. Sand-resistant impeller with wear resistance, pressure resistance and large flow.
2 Stainless steel strainer
Effective isolation of debris, filtration more fine service life long.

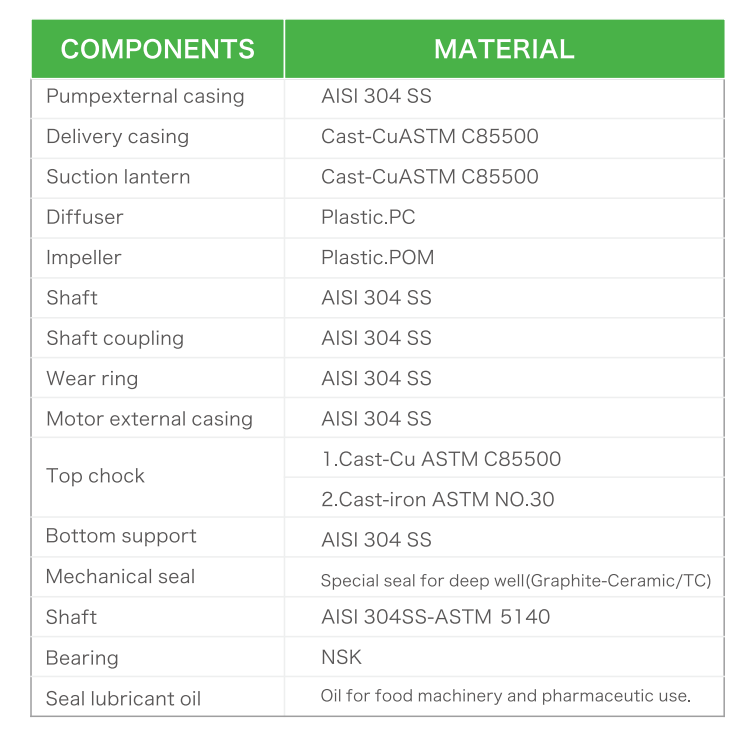

3 High quality stainless steel
Carefully selected materials, high-quality stainless steel.
High temperature resistance, corrosion resistance, high toughness.
4
High quality motor
Ultra-high head
Anti-sand impeller
Low noise operation
High efficiency and energy saving
Overheated protection
